300-350W LED Street Light

HQ-RL760-W300~350,Hollow out heat sink design makes the lamp lighter and better at heat dissipation. High efficiency lumileds SMD3030 Chip Led fixture. Snap-in power cover, easier and faster for installation. 10Kv surge protection integrated led fixture. Varieties lighting distribution optional different application.



> SPECIFICATION


Name

LED Street Light

Item No.

HQ-RL760-W300~350

Power

300~350W

Input

AC85-265V 50/60Hz

Lumen

130LM/W

Viewing angle

80*150°

Color temperature

2800-10000K

Color rendering index

>80

Working temperature

-30~+50

Storage temperature

-30~+65

Protection grade

IP65

LED lifespan

>50,000Hrs

Shell color

Black

Measurement

689*320*84MM



> APPLICAITON


Widely used in main roads, elevated roads, urban streets, flyovers, sidewalks, high ways, overpasses, squares and other places requiring outdoor lighting.





> FEATURE


1. Energy savings of up to 50-80% over existing HID solutions

2. Environmentally friendly thickness aluminum, Processed by panting, treatment and anodic oxidation, solid and corrosion resisting

3. Free of dust and water, reduce stress of maintenance

4. With several types adapter, can meet any requirements of different application

5. Protection grade reaches IP65

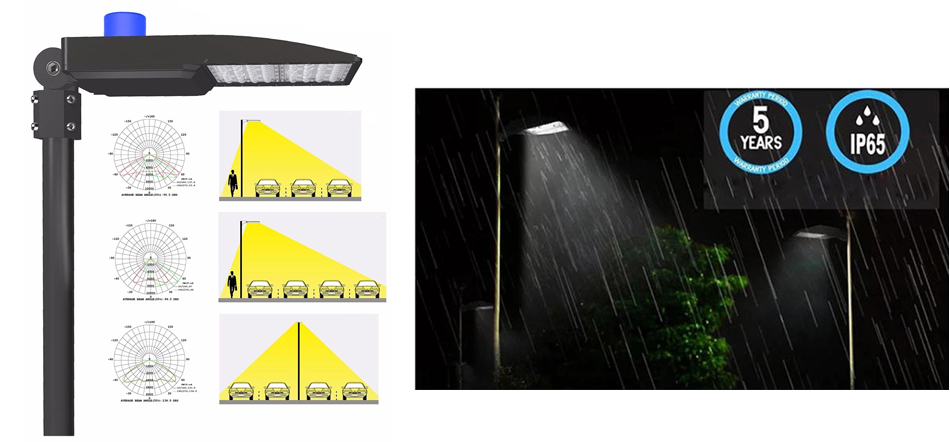

>   DETAILS SHOW

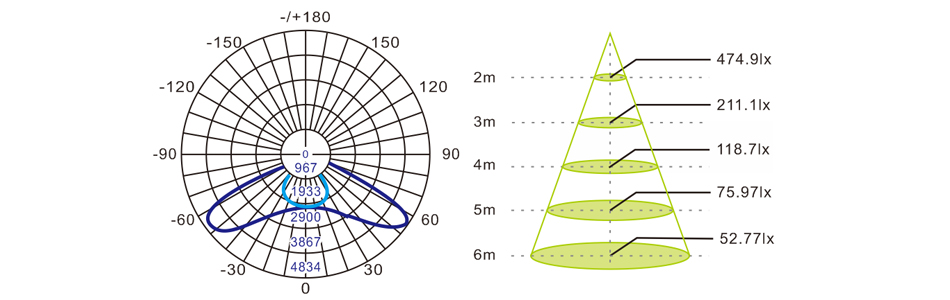

>   DISTRIBUTION CURVE

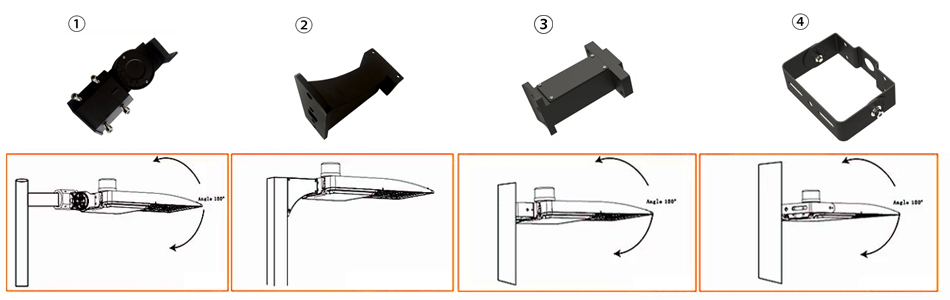

>   ADAPTER

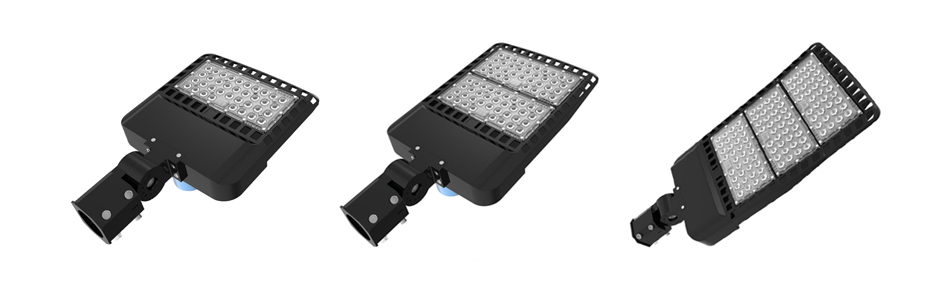

> ALL   SERIES



ITEM NO.

POWER

LUMEN

MEASUREMENT

HQ-RL760-W50~120

50~120W

130LM/W

495*310*84MM

HQ-RL760-W150~200

150~200W

130LM/W

621*310*84MM

HQ-RL760-W300~350

300~350W

130LM/W

689*320*84MM
